The 5XFZ-600 model of combined seed cleaner is used for small seed production lots and breeding plots. A wide range of sieves makes the machine suitable for almost any crop.
The 5XFZ-600 model of combined seed cleaner is used for small seed production lots and breeding plots. A wide range of sieves makes the machine suitable for almost any crop.

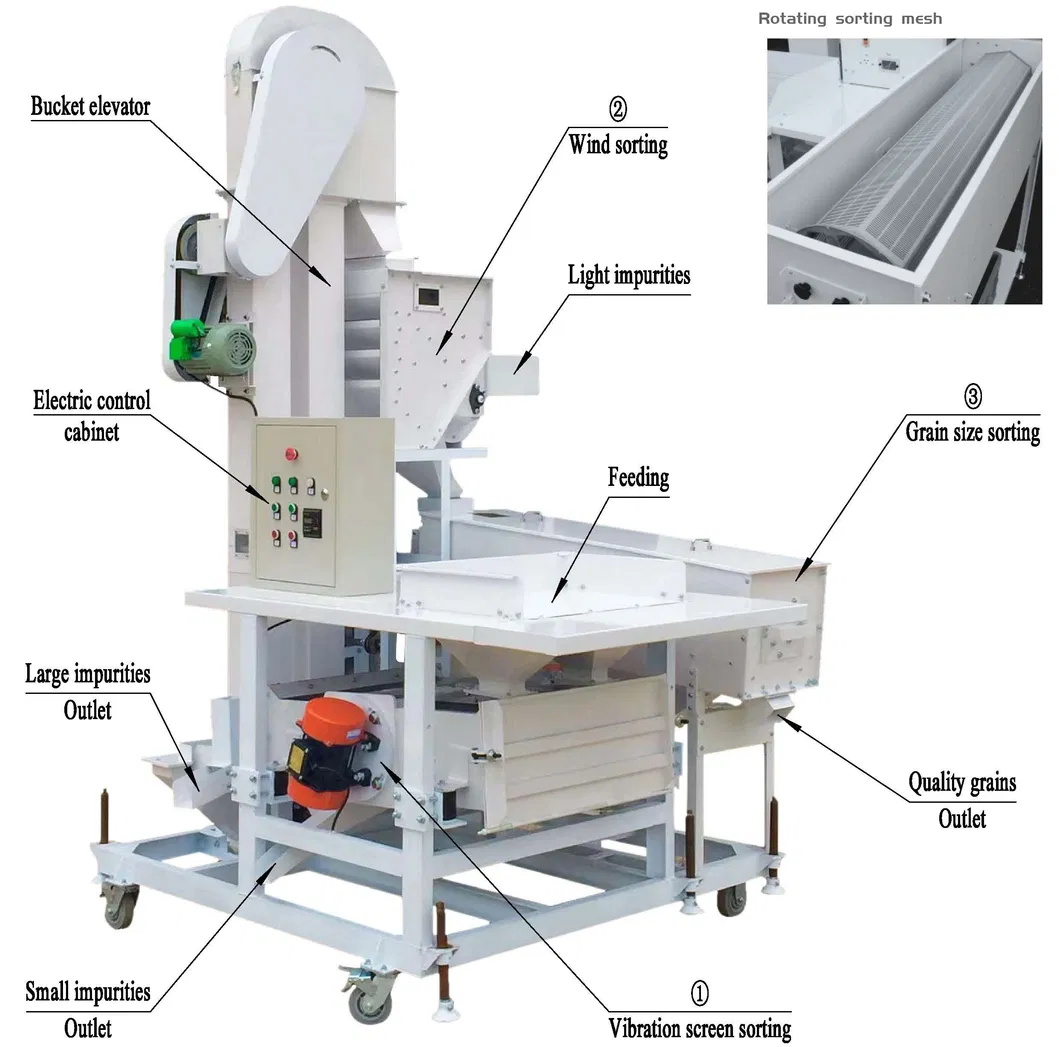

The machine's wind sorting based on aerodynamics and the surface speed difference of seed and impurities, adjusting the seed of the air current. As impurities are light, they are sucked and discharge from air pipe, while seed is heavy sorted by vibrating screen and rotary screen. The vibrating screen has two layers sieves with three outlets which eject large size impurities, small size impurities and desired size of seeds. The rotary screen can effectively divide seeds into two classifications based on seed's external dimensions through its internal rotating sorting sieve. Of course, if necessary, user can also replace the sieve with different mesh sizes to remove large or small impurities again.

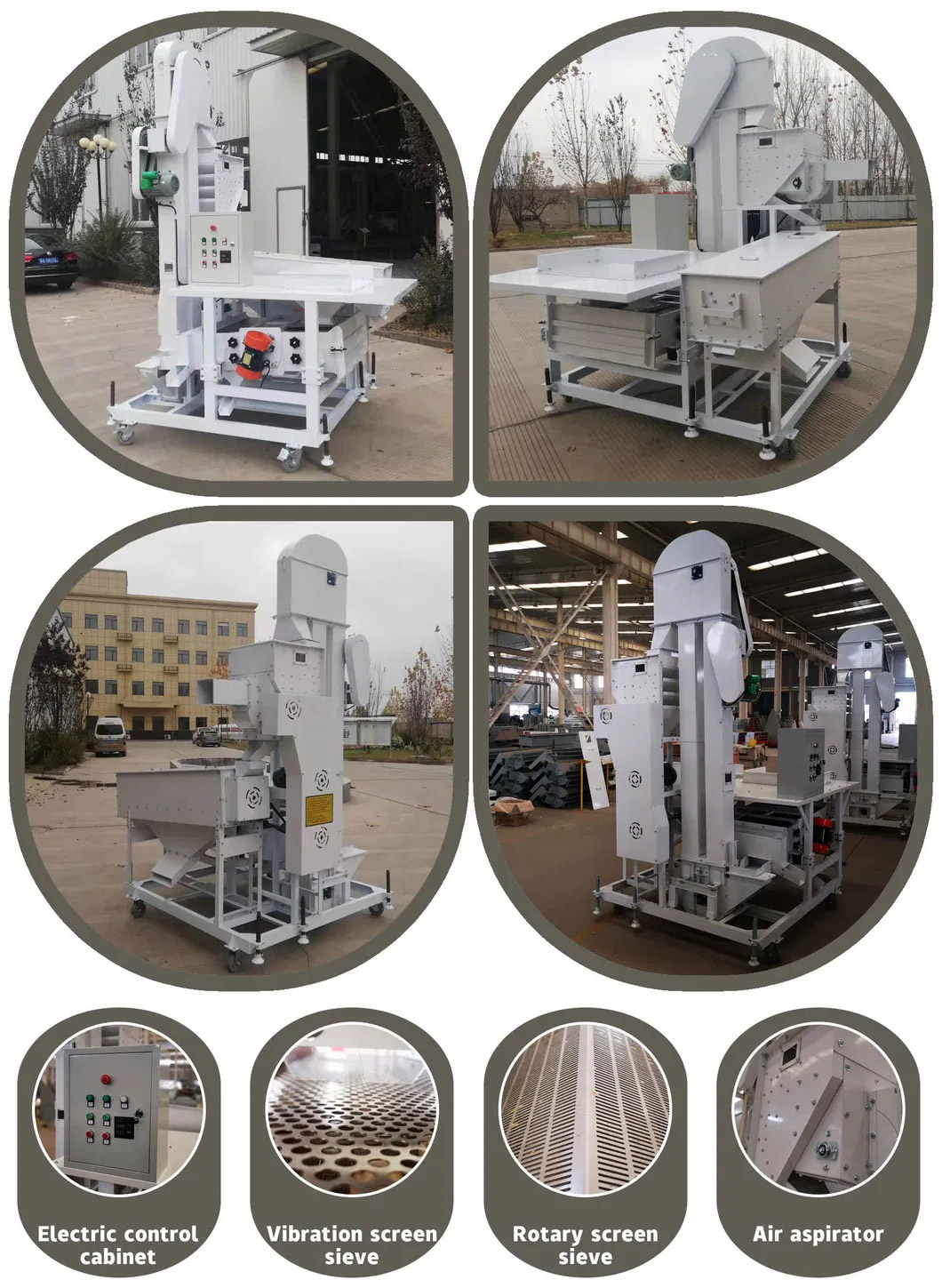

The machine has 2 layers of vibration screen, The sieves are installed on screen frames, with rubber balls.
The rubber ball structure complies with international standards. Our rubber ball is highly elastic, endures and long lasting.
The volume of air is variable and adjusted from minimum to maximum by a frequency converter, assuring very accurate cleaning and sorting of seeds. The blower has a very stable and reproducible output.
The machine has a very low noise level.
Very easy and thorough cleaning of the machine and less contamination risk.
No wooden frames on the sieves where seeds can hide.

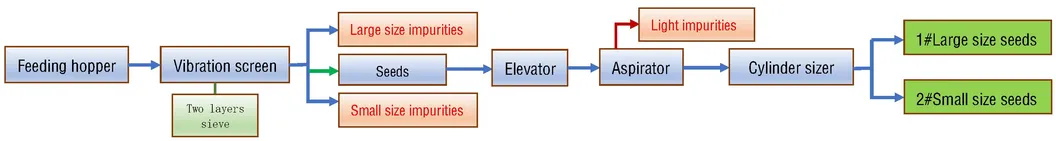

1. Put the seeds into feeding hopper, and then the seeds drop to the vibration screen. The overflow impurities which large than good seeds from first sieve leaves the machine and discharge to the outlet. The seeds dropped through fall on the second sieve, smaller than the desired size drop through and are eliminated through outlet. The overflow seeds of second sieve have the desired size and are transported into bucket elevator.
2. Through bucket elevator the seed are transported to the air-suction channel, and then drop to the rotary screen. The Air suction volume is adjustable by frequency converter very easy and accurate separation without loss of seeds in the air flow. In the air-suction, the seeds are sorted by weight, the dust and lightest impurities are carried upwards with the air stream. The heavy seed will fall down in rotary screen.
3. The rotary screen can effectively divide seeds into two levels based on seed's external dimensions through its internal rotating sorting sieve. Of course, if necessary, you can also replace the sieve plates with different mesh sizes to remove large or small impurities again.
Model | 5XFZ-600 |
Max-capacity (Base on rice seed) | 1000 Kg/h |
Size of vibration screen | 1000×700 mm |
Sieve layers | 2 |
Length of cylinder screen | 1300 mm |
Area cylinder sieve | 1.287m2 |
Overall size | 2215×1840×3090 mm |
Power supply | 380V / 50Hz / 3-Phase |
Total power | 2.24 kW |
Weight | 800 Kg |
Cleaning rate | ≥97% |
Broken rate | ≤0.2% |
Note: The capacities may vary depending on seed condition, moisture content, seed varieties, types and volumes of contaminants to be separated and percentage of foreign material acceptable in the final product.

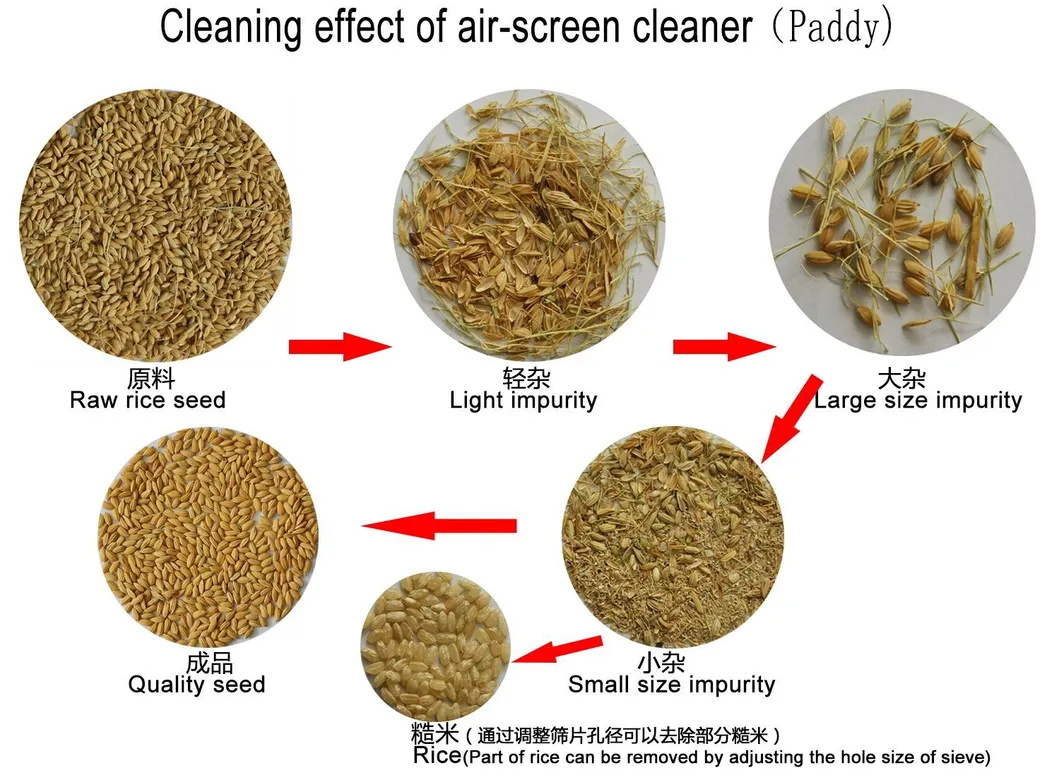

Light impurities: mainly including grain skin, grain husk, somestraw and dust, etc.
Large impurities: mainly including impurities whose overall dimension is larger than that of seeds, such as some larger straws, soil blocks, etc.
Small impurities: small rods, broken seed, sand and other small impurities.
The machine is suitable for processing various crops and all granular materials. Especially for rice seed, beans, wheat and other crops, the cleaning effect is better.
