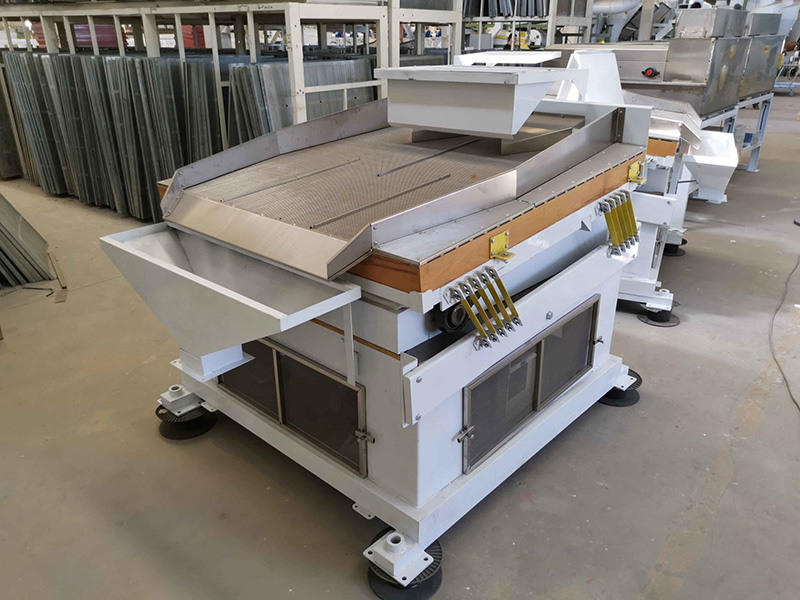

The 5XZQ-6 Blowing type gravity De-stoner primarily used for the food process business enterprise, separate the stone, pebble, clod from wheat, paddy, corn, sesame etc , according to
material weight difference. This machine adopt vibration electric engineering as vibration source, having the characteristics that vibration amplitude can adjustable and move organization. Floating-axis rotation, with balancing device, Simple structure, stable operation, small size, high efficiency, safety and reliability.
Model | 5XZQ-6 | 5XZQ-8 | |
Max-feeding | Wheat seed | 4000-6000 Kg/h | 6000-8000 Kg/h |
Maize | 3000-5400 Kg/h | 5000-7000 Kg/h | |
Bean&Peas | 3000-5000 Kg/h | 4500-6500 Kg/h | |
Paddy | 2000-3600 Kg/h | 3000-4800 Kg/h | |
Sesame | 900-2000 Kg/h | 1000-2500 Kg/h | |
Overall Size (L×W×H) | 1800×1630×1600mm | 2600×1900×1850mm | |
Screen size | 1500×1520 mm | 1800×1750 mm | |
Weight | 850 Kg | 1050 Kg | |
Power supply | 380V / 50Hz / 3-Phase | ||
Total power | 9.0 kW | 9.0 kW | |
Selection rate | ≥98% | ≥98% | |
Remarks | Can with Cyclone duster | ||
Note: The capacities may vary depending on seed condition, moisture content, seed varieties, types and volumes of contaminants to be separated and percentage of foreign material acceptable in the final product.
