This small Air screen Cleaner is used for small seed production lots and breeding plots.

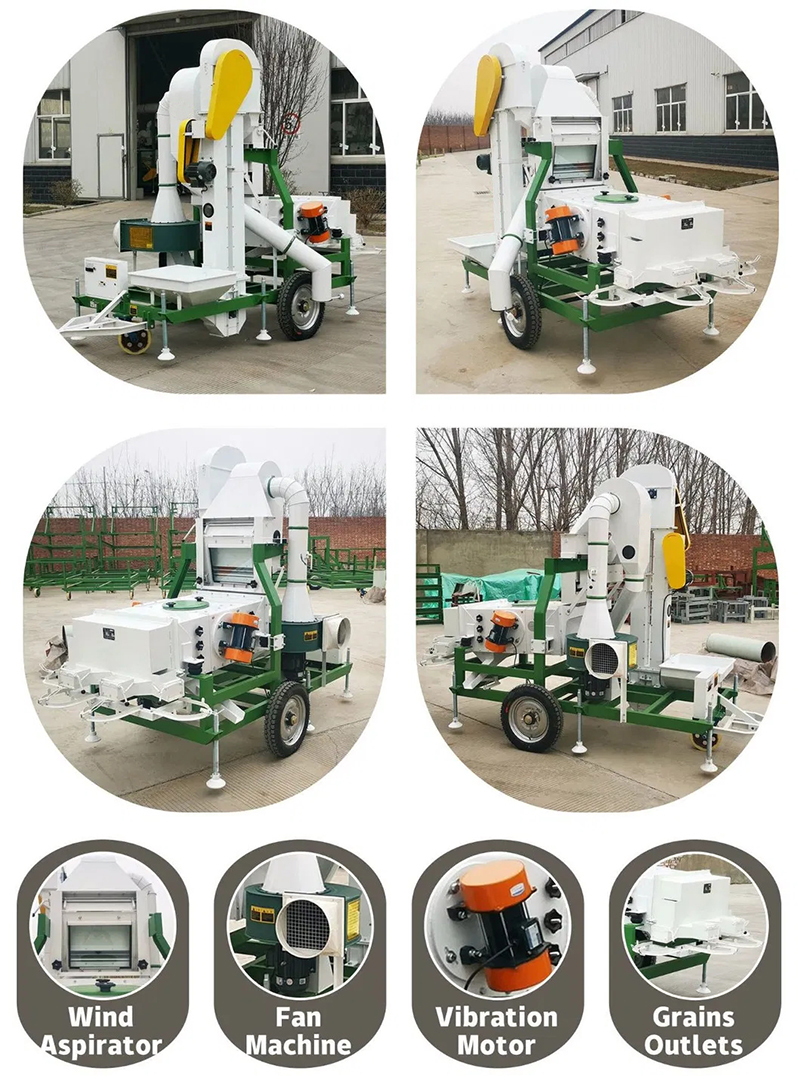

The 5XZC-3B seed cleaner is the smallest version of the 5XZC series air screen cleaner and suitable for all kinds of seeds. This small Air-screen Cleaner is used for small seed production lots and breeding plots. A wide range of sieves makes the machine suitable for almost any crop.
The machines sift based on aerodynamics and the surface speed difference of seed and impurities, adjusting the seed of the air current. As impurities are light, they are sucked into the ejection chamber, while seed is heavy and is transferred into a vibrating screen. The vibrating screen has Three layers sieves with four outlet which eject large impurities, small impurities and seed respectively, The vibration screen used for separating seeds according different sizes.
1.The machine works with 3 sieve levels, The sieve are cleaned on ball frames, with rubber balls.
2.The rubber ball sifting structure complies with international standards, rubber ball is highly elastic, endures and long lasting.
3.The sieves are tightly fit in the machine by a clamp-locking system for quick changing of the sieves and thorough cleaning of the machine.
4.The volume of air is variable and adjusted from minimum to maximum by a controlling handle, assuring very accurate cleaning and sorting of seeds. The blower has a very stable and reproducible output.
5.Transparent inspection windows for easy inspection and clean out.
6.The machine has a very low noise level.
7.Very easy and thorough cleaning of the machine and no contamination risk.
8.No wooden frames on the sieves where seeds can hide.

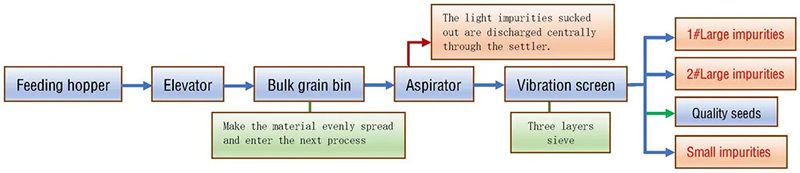

Feeding and Air-suction.
Put the seeds into feeding hopper, through bucket elevator the seed are transported to the air-suction channel, and then drop to the first sieve. The Air suction volume is adjustable by hand very easy and accurate separation without loss of seeds in the air flow. In the air-suction, the seeds are sorted by weight, the dust and lightest impurity are carried upwards with the air stream and fall down in the dust collector. The heavy seed will fall down in the firstly layer sieve.
Sieving(3 layer sieve).
The overflow impurity which large than good seeds from first sieve leaves the machine and discharge to the outlet. The seeds dropped through fall on the second sieve for the next sieving. The overflow of the second sieve leaves the machine at the outlet, The seeds dropped through fall on the bottom sieve, smaller than the desired size drop through and are eliminated through outlet. The overflow seeds of bottom sieve have the desired size and are transported to the front outlet of machine.
Model | 5XZC-3B | |
Max-feeding | Wheat | 2000-3000 Kg/h |
Paddy | 1000-1800 Kg/h | |
Sesame | 700-1000 Kg/h | |
Maize&peas | 1800-2500 Kg/h | |
Size (L×W×H) mm | 3400×1800×2660 | |
Sieve size | 1250×800mm | |
Sieve Layers | 3 | |
Weight | 1030 Kg | |
Power supply | 380V/50Hz/3-Phase | |
Total power | 4.25 kW | |
Selection rate | ≥98% | |
Cleaning rate | ≥97% | |
Broken rate | ≤0.2% | |
Impurities rate | ≤3% | |
Note: The capacities may vary depending on seed condition, moisture content, seed varieties, types and volumes of contaminants to be separated and percentage of foreign material acceptable in the final product.

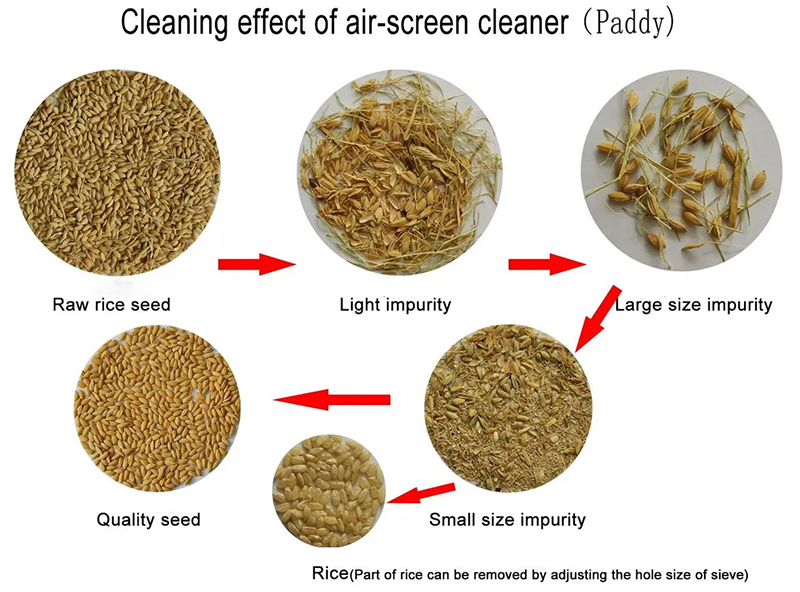

Light impurities: mainly including grain skin, grain husk, somestraw and dust, etc.
Large impurities: mainly including impurities whose overall dimension is larger than that of seeds, such as some larger straws, soil blocks, etc.
Small impurities: small rods, broken seed, sand and other small impurities.
The 5XZC Series Air screen seed cleaner is suitable for processing various crops and all granular materials. Especially for rice seed, beans, sesame, wheat and other crops, the cleaning effect is better.
