5XZC-5BX Air screen Cleaner(5t/h)

The 5XZC-5BX Air-screener has 3 layers sieve, with a very wide range of sieves available, this machine is very versatile and can be used for seed cleaning of almost all crops.

This machine performs wind sorting by adjusting the airflow based on aerodynamics and the surface velocity difference between seeds and impurities. As impurities are light, they are sucked into the cyclone duster, while seed is heavy and is transferred into a vibrating screen. The vibrating screen has three layers sieve with four outlets which eject large impurities, small impurities and seed respectively, the vibration screen used for separating seeds according different sizes and grading at the same time.

Product Advantages.

1.The machine works with 3 layers sieves, The sieve are cleaned on ball frames, with rubber balls.

2.The rubber ball sifting structure complies with international standards. It is highly elastic, endures and long lasting.

3.The sieves are tightly fit in the machine by a clamp-locking system for quick changing of the sieves and thorough cleaning of the machine.

4.The volume of air is variable and adjusted from minimum to maximum by a controlling handle, assuring very accurate cleaning and sorting of seeds. The blower has a very stable and reproducible output.

5.Transparent inspection windows for easy inspection and clean out.

6.The machine has a very low noise level.

7.Very easy and thorough cleaning of the machine and no contamination risk.

8.No wooden frames on the sieves where seeds can hide.

9.With cyclone duster, environmentally friendly model.

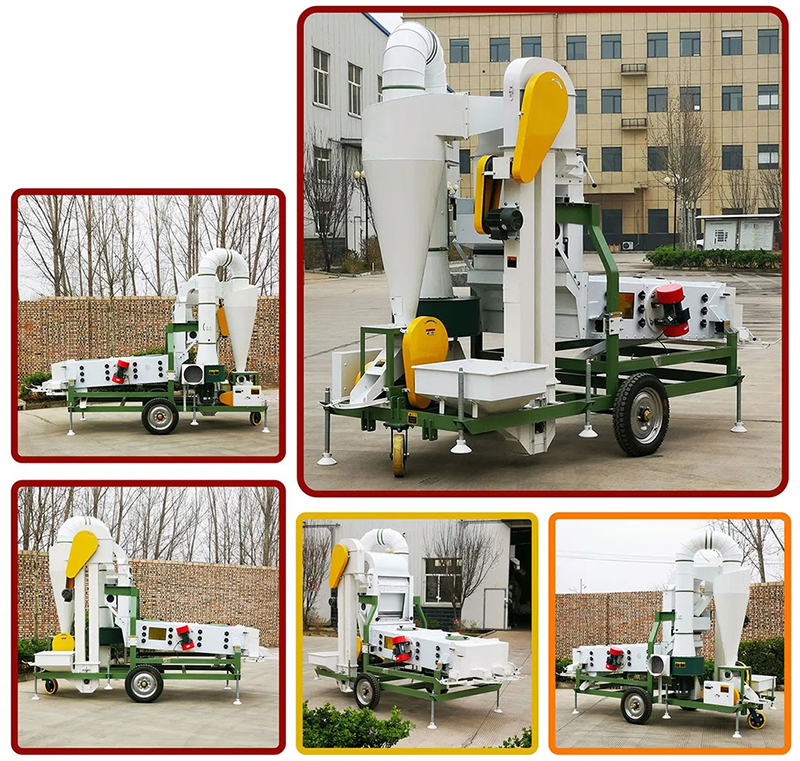

Detailed Photos.

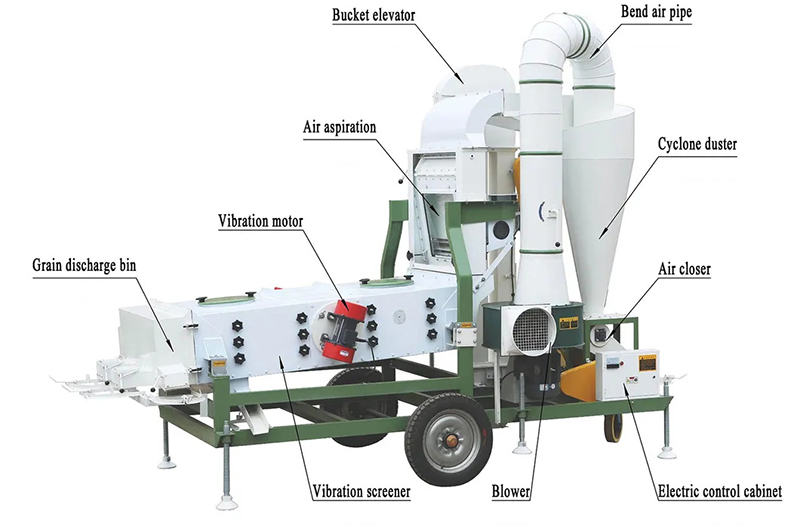

Flow Diagram.

Feeding and Air-suction.

Put the seeds into feeding hopper, through bucket elevator the seed are transported to the air-suction channel, and then drop to the first sieve. The Air suction volume is adjustable by hand very easy and accurate separation without loss of seeds in the air flow. In the air-suction, the seeds are sorted by weight, the dust and lightest impurity are carried upwards with the air stream and fall down in the cyclone duster. The heavy seed will fall down in the firstly sieve.

Sieving(3 layers sieve).

The overflow impurity which large than good seeds from first sieve leaves the machine and discharge to the outlet. The seeds dropped through fall on the second sieve for the next sieving. The overflow of the second sieve leaves the machine at the outlet, The seeds dropped through fall on the bottom sieve, smaller than the desired size drop through and are eliminated through outlet. The overflow seeds of bottom sieve have the desired size and are transported to the front outlet of machine.

Product Parameters.

Cleaning Effect.

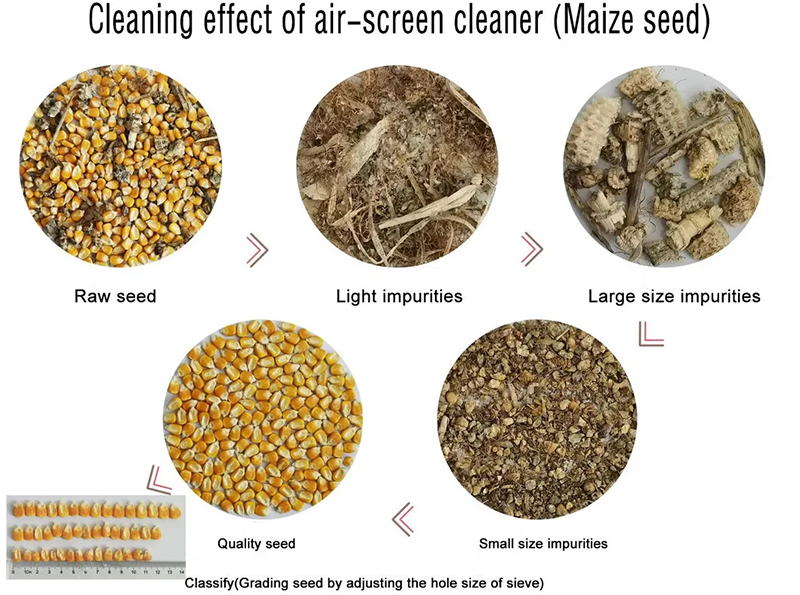

Take maize seed as an example, see the picture below:
